What is Cold Drawn Wire?
Cold drawn wire is a kind of metal wire made by pulling steel wire rods through a wire drawing machine to make them thinner — all done at room temperature. It usually starts with 6.5mm steel wire rods and then is drawn several times after peeling, lubrication, multiple drawing until reaching the desired diameter. The final product is what most people know as iron wire, widely used for nail making and other metal products.
Although the cold drawn wire process is not complicated, the production of high-quality cold-drawing wire requires the selection of high-quality raw materials, cooperation with advanced drawing equipment and strict quality inspection process to ensure stable performance and smooth surface.
Technical Parameter Table of Uniwin Cold-Drawn Steel Wire
The following are the regular specifications of our cold-drawn wire products. Support Customization, welcome to inquire!
| Item | Specification |
|---|---|
| Raw Materials | Q195 / Q235 / #45 / #65 (Customizable) |
| Diameter Range | 1.2 mm, 2.0 mm, 2.5 mm, 2.8 mm, 3.1 mm, 3.4 mm, 4.7 mm, 5.0 mm… |
| Tensile Strength | 350-1000MPa (Customizable) |

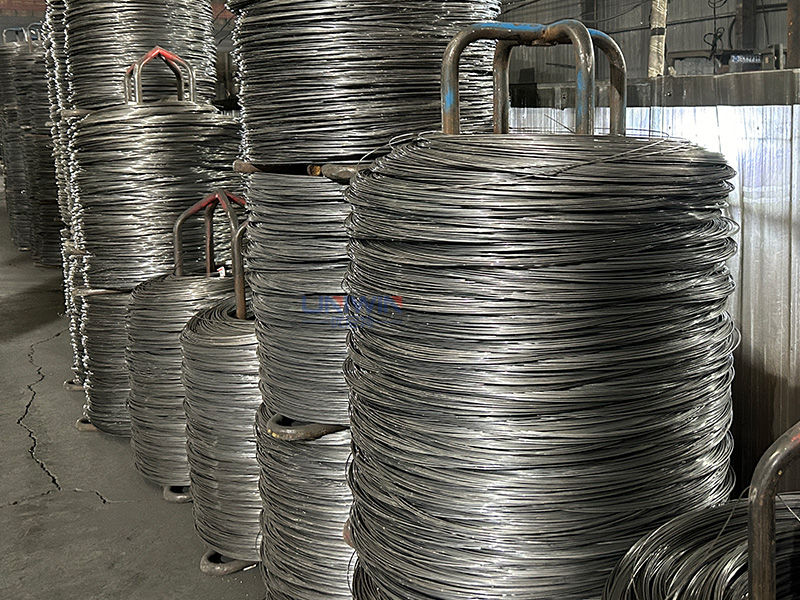

| Surface Treatment | Black Annealing, Bright, Galvanized… |
| Packing Form | Coil Packaging |
| Weight per Coil | Approximately 350kg |
Cold Drawing Wire Features and Advantages
- Smooth surface without burrs.
- High tensile strength, uniform force, and good stability.
- Corrosion resistance, long service life.
- Suitable for subsequent deep processing such as welding, nail making, etc.
- Wire diameter can be customized as needed.
Cold Drawn Wire Production Process
- Raw material selection (steel wire rod)
- Surface descaling/pickling and rust removal
- Lubrication treatment (w ire drawing powder)
- Multi-pass cold drawing (wire drawing machine)
- Coiling/packaging
- Quality inspection and storage

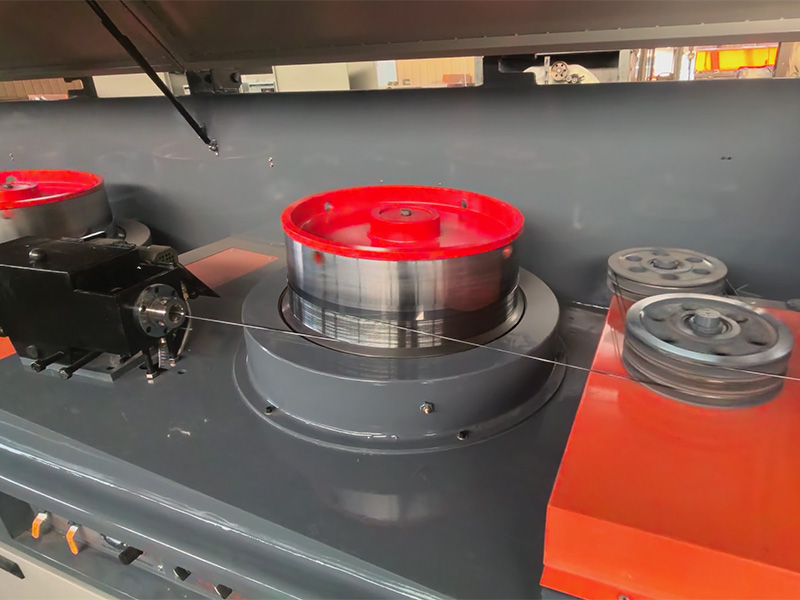

We use fully automatic wire drawing machine equipped with a tension control system, lubrication, and dual cooling system (air cooling + water cooling) to ensure high quality of the finished product.
Application of Cold Drawn Steel Wire

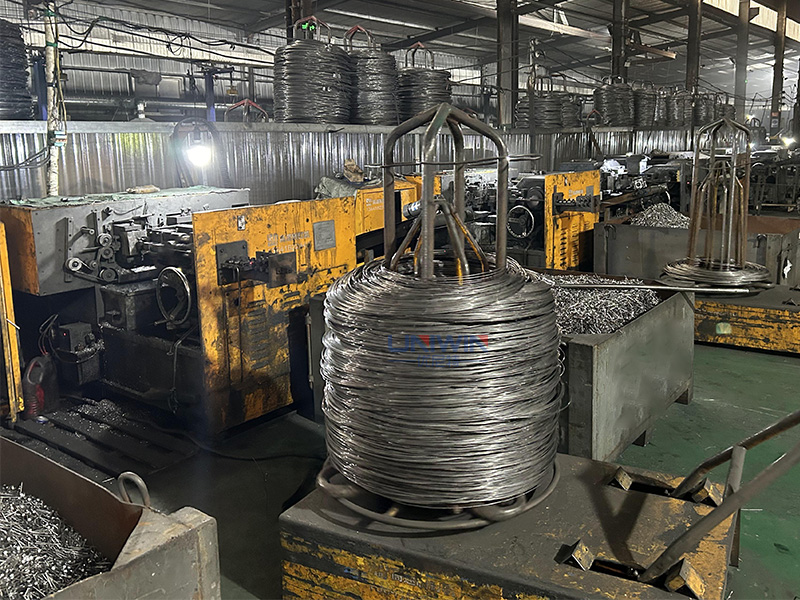

Cold drawn wire is widely used in nail and screw manufacturing, spring and mechanical parts production, welding wire, barbed wire and chain link fence manufacturing.
