Straight Line Wire Drawing Machine
The straight line wire drawing machine reduces wire diameter through multiple drawing dies and independently driven drawing drums. Each drawing block operates with coordinated speed and tension control, helping maintain stable wire drawing and a consistent finished wire diameter.
UNIWIN supplies straight line wire drawing machines with different drum configurations for different wire materials and drawing ranges. The machine can be configured according to the wire material, inlet diameter, required outlet diameter, production capacity, and take-up method.
Max. Inlet
Up to 8.0 mm
Min. Outlet
Approx. 1.6 mm
Drawing Drums
By Drawing Range
Control System
PLC + VFD
Wire Materials & Applications
Our straight line wire drawing machines can be configured for different steel wire materials and drawing requirements, providing stable drawing performance for a wide range of industrial applications.
Wire Materials
- Low-Carbon Steel Wire
- High-Carbon Steel Wire
- Stainless Steel Wire
Typical Applications
- Nail Wire
- Wire Mesh Wire
- Binding Wire
- Construction Wire
- Industrial Steel Wire
Machine configuration is selected according to the wire material, inlet diameter, target diameter, and required production capacity.

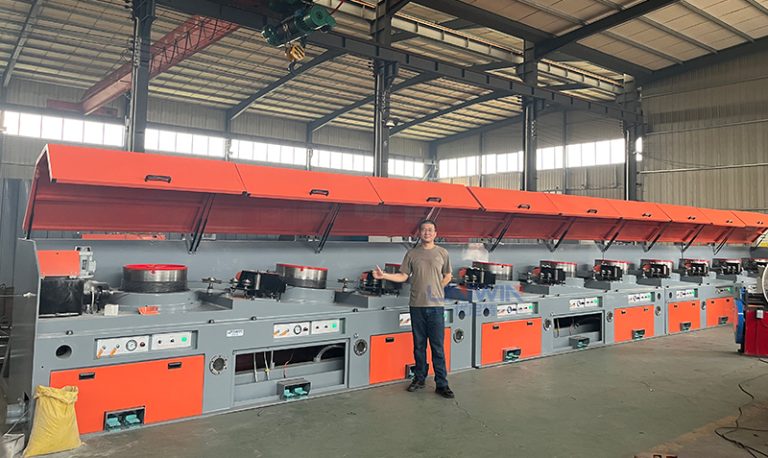

Typical Configuration: LZ11/560 11-Drum Straight Line Wire Drawing Machine
Typical configuration for drawing ฮฆ6.0 mm low-carbon steel wire rod to ฮฆ1.6 mm finished wire. Other configurations are available for different wire materials and drawing ranges.
| Item | Specification |
|---|---|
| Model | LZ11/560 |
| Drawing Drums | 11 |
| Wire Material | Low-Carbon Steel Wire Rod |
| Inlet Wire Strength | โค560 MPa |
| Inlet Wire Diameter | ฮฆ6.0 mm |
| Outlet Wire Diameter | ฮฆ1.6 mm |
| Production Speed | 350 m/min |
| Drawing Drum Diameter | ฮฆ560 mm |
| Motor Configuration | 11 ร 22 kW, 6-pole motors |
| Control System | PLC + Frequency Converter |
| Transmission | Reducer + Belt Transmission |
| Cooling Method | Internal Water Cooling + External Air Cooling |
| Total Area Reduction | โค93.16% |
| Average Reduction per Pass | โค23.53% |
Drawing Speed Reference
| Number of Drawing Drum | Speed |
|---|---|
| Three-Drum | 3.2m/s |
| Four-Drum | 4m/s |
| Five-Drum | 5m/s |
| Six-Drum | 6m/s |
| Seven-Drum | 7.7m/s |
| Eight-Drum | 10m/s |
| Nine-Drum | 13m/s |
| Ten-Drum | 14m/s |
| Eleven-Drum | 14m/s |
Note: Reference speeds at 50 Hz. Actual speed depends on wire size, material, reduction ratio, cooling, and lubrication.
Core Components and Details
Key components for stable drawing and reliable operation.
Power & Transmission

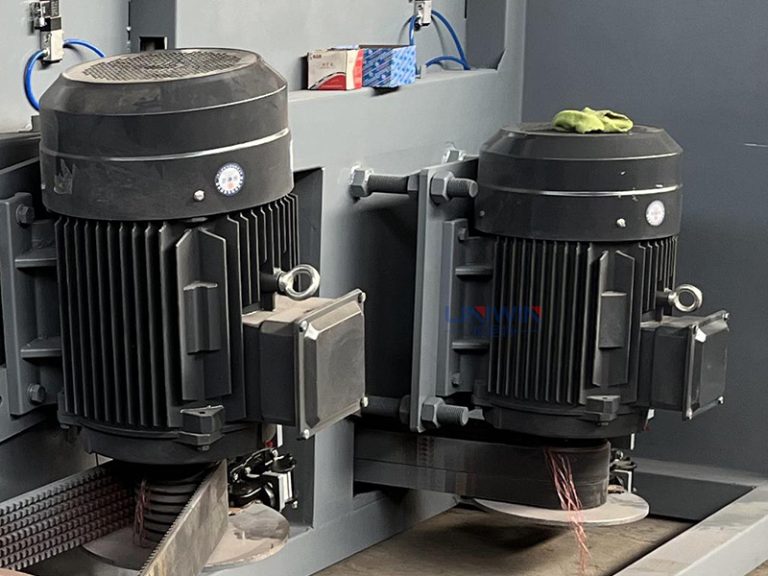

- Independent Motor Drive
22 kW ยท 6-Pole Motor
Stable power and independent speed control.

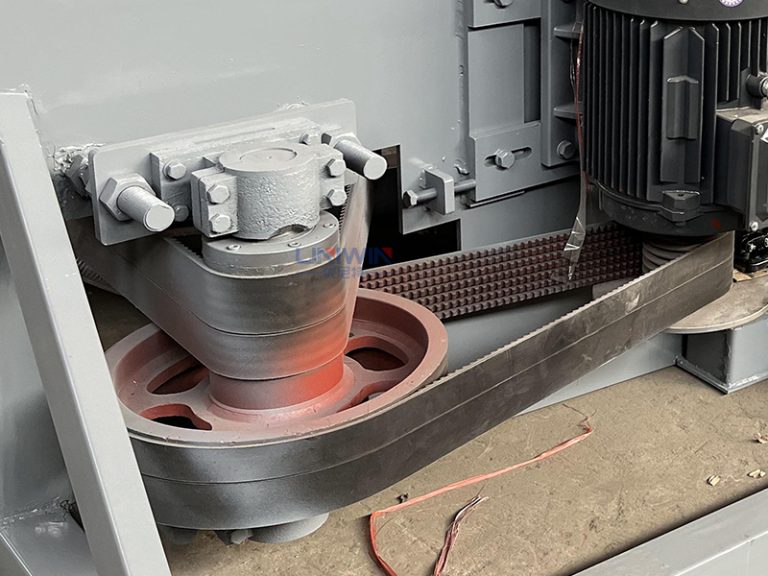

- FAF107 Reducer & Belt Drive
Reducer + Belt Transmission
Stable transmission and smooth operation.
Drawing & Process

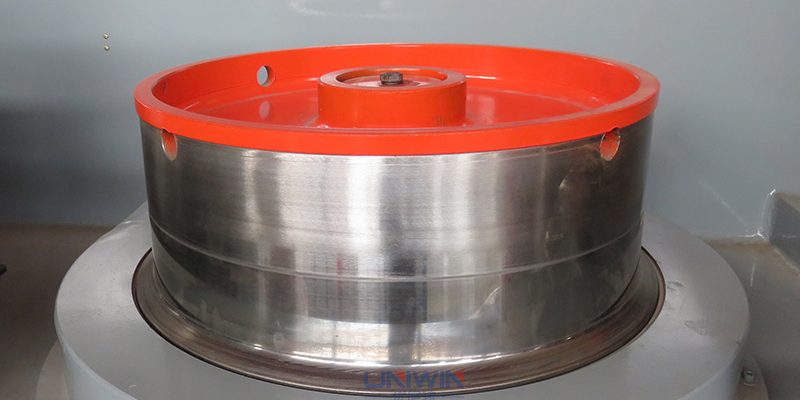

- Drawing Drums
ฮฆ560 mm ยท ZG45 Cast Steel
Wear-resistant and durable.

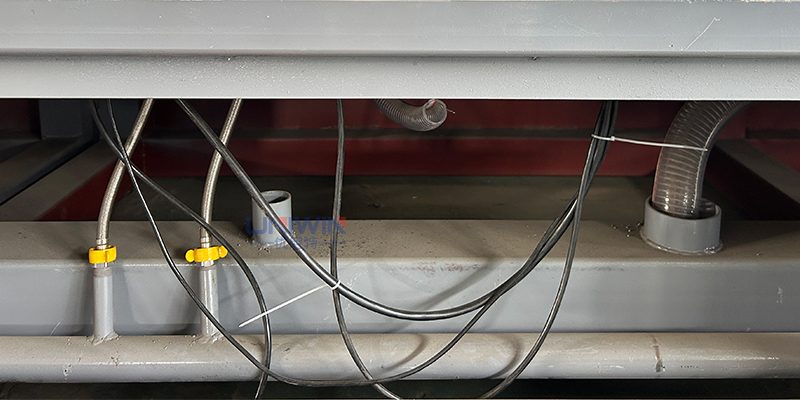

- Water & Air Cooling
Dual Cooling System
Effective temperature control.

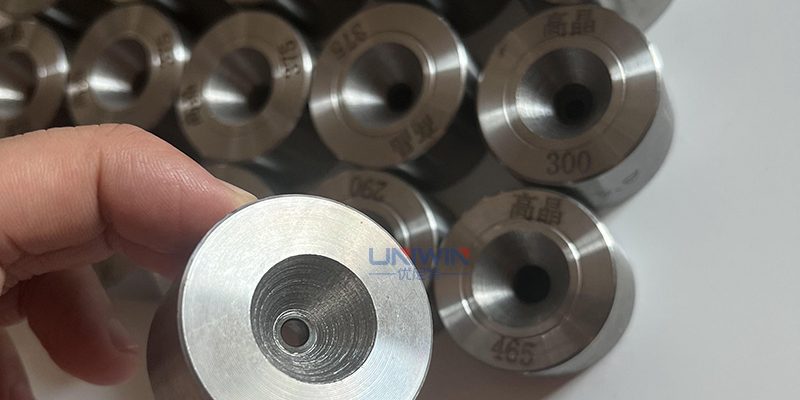

- PCD Drawing Dies
Approx. 300 Tons
High wear resistance and precision.

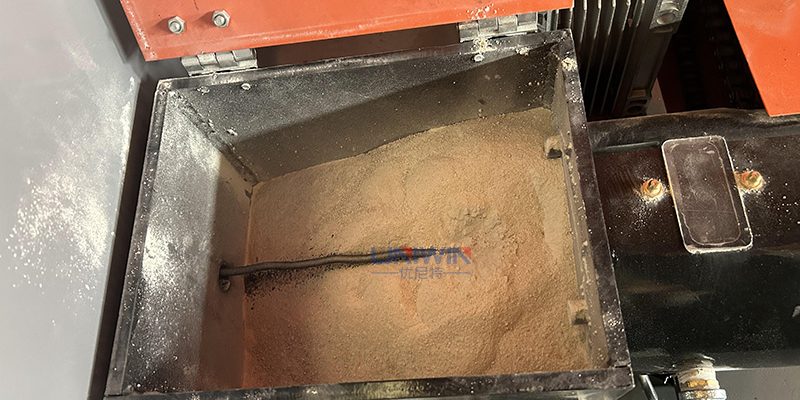

- Drawing Die Boxes
Cooling + Lubrication
Stable lubrication and improved wire roundness.
Control & Electrical
- Touch Screen
Parameter Setting + Status Monitoring
Optional brands: Weinview, Siemens, ABB, or Inovance.

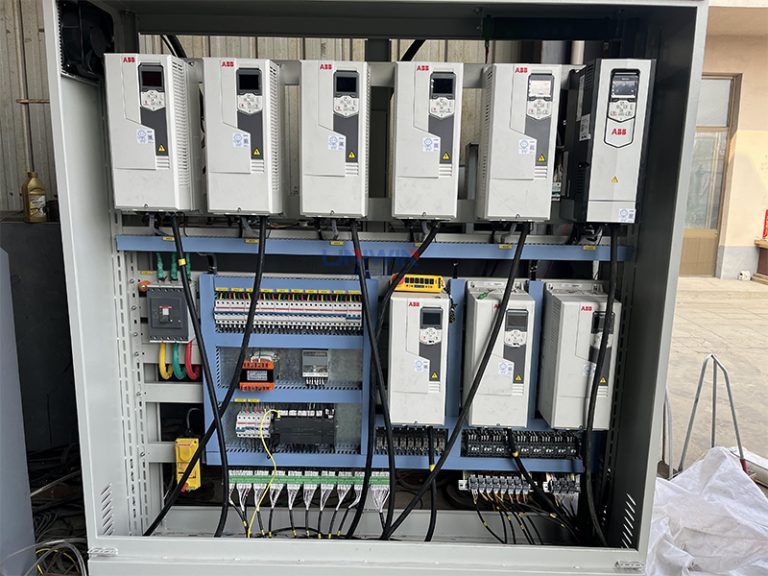

- Intelligent Control System
PLC + VFD
Automatic speed control and stable operation.
Need a Suitable Configuration?
Send us your wire material, inlet diameter, outlet diameter, and capacity.
Complete Wire Drawing Line Equipment We Can Supply
* Main Process: Wire Pay-Off โ Mechanical Descaling โ Straight Line Wire Drawing โ Wire Take-Up *
Cylinder-Type Wire Pay-Off Stand ( Alloy Material )
Feeds the raw wire rod smoothly into the drawing line.
Enclosed Descaling Machine ( Three Descaling Wheels )
Removes oxide scale and surface impurities from the wire rod before drawing.
Straight Line Wire Drawing Machine
Core equipment of the wire drawing line. Reduces wire diameter through multiple drawing passes.
Wire Take-Up Machine
Collects finished wire after drawing. We supply hydraulic, elephant trunk, and I-wheel take-up machines.
Sharpening Mill
Prepares the wire end for threading through the drawing dies.
Butt Welding Machine
Joins wire ends for continuous production.
GLOBAL PROJECTS

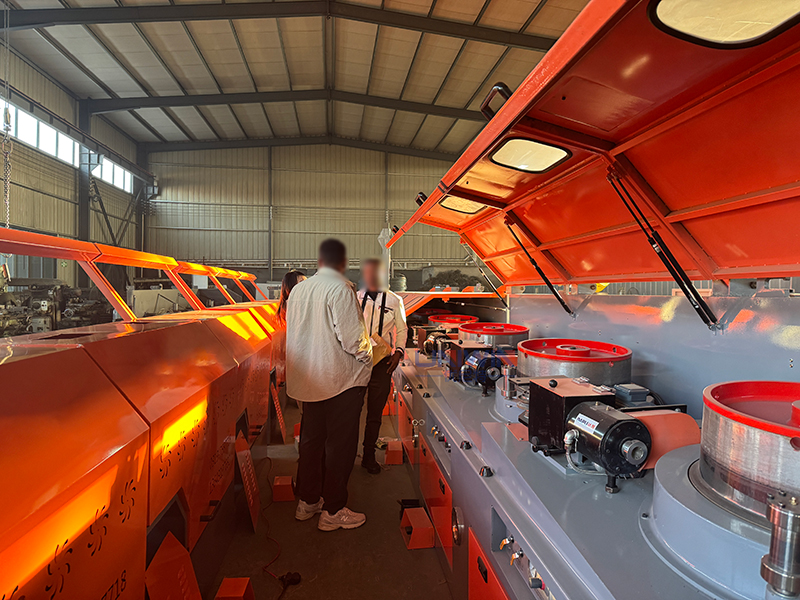

Straight Line Wire Drawing Machine Projects
Selected straight line wire drawing machine projects with different drum configurations supplied to customers in different markets.

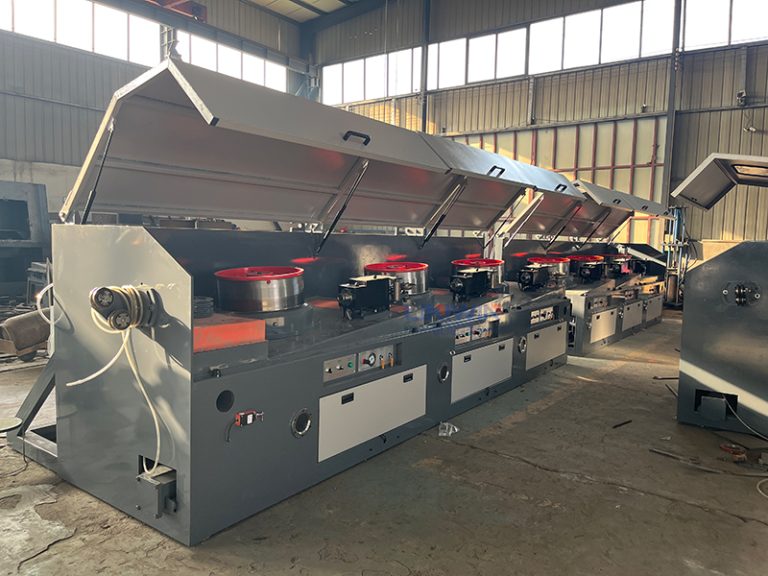

๐ฉ๐ฒ Dominica
6-Drum Straight Line Wire Drawing Machine

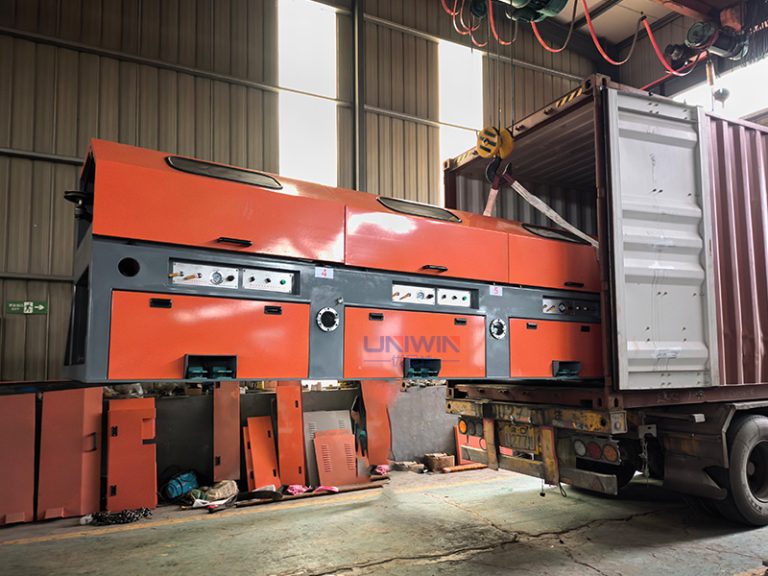

๐ฒ๐ฆ Morocco
10-Drum Straight Line Wire Drawing Machine
๐ง๐ฎ Burundi
7-Drum Straight Line Wire Drawing Machine
FAQ
Frequently Asked Questions
Selected straight line wire drawing machine projects with different drum configurations supplied to customers in different markets.
How many drawing drums are needed for a straight line wire drawing machine?
The number of drums depends on the wire material, inlet diameter, target diameter, and drawing process.
What is the maximum inlet and minimum outlet diameter?
The machine can handle inlet wire up to 8.0 mm and outlet wire down to 1.6 mm, depending on the configuration.
Can one machine produce different finished wire diameters?
Yes. Different wire diameters can be produced by changing the drawing dies and adjusting the drawing process within the machineโs designed range.
What wire materials can this straight line wire drawing machine process?
This machine is suitable for low-carbon steel wire and stainless steel wire. We offer a high-carbon model for high-carbon steel wire.
What are the advantages of straight line wire drawing machine?
It offers independent drum drive, coordinated speed and tension control, stable wire diameter, and efficient continuous production.
Can the machine be customized for different production requirements?
Yes. Drum quantity, motor power, control system, voltage, and take-up equipment can be configured according to different production requirements.
