Water Tank Wire Drawing Machine for Nail & Steel Wire | Uniwin
Uniwin water tank wire drawing machine is a kind of wet wire drawing equipment suitable for fine metal steel wire processing. The wet-type drawing machine is equipped with a water cooling system to effectively control the wire temperature during the wire drawing process, protect the wire drawing die, and improve the finish and dimensional consistency of the finished drawn wire.
This machine is especially suitable for drawing small-size wire, like 1.2mm, 1.0mm, 0.8mm, 0.7mm…
It is suitable for metal wire industries such as nail manufacturing, welding wire processing, and building wire binding forming, and is an important equipment for nail production lines.
Highlights of Water Tank Type Wire Drawing Machine
Compared with traditional dry wire drawing equipment, water tank wire drawing machine has the following advantages:
- Water Cooling to protect the wire from deformation and extend the drawing die life.

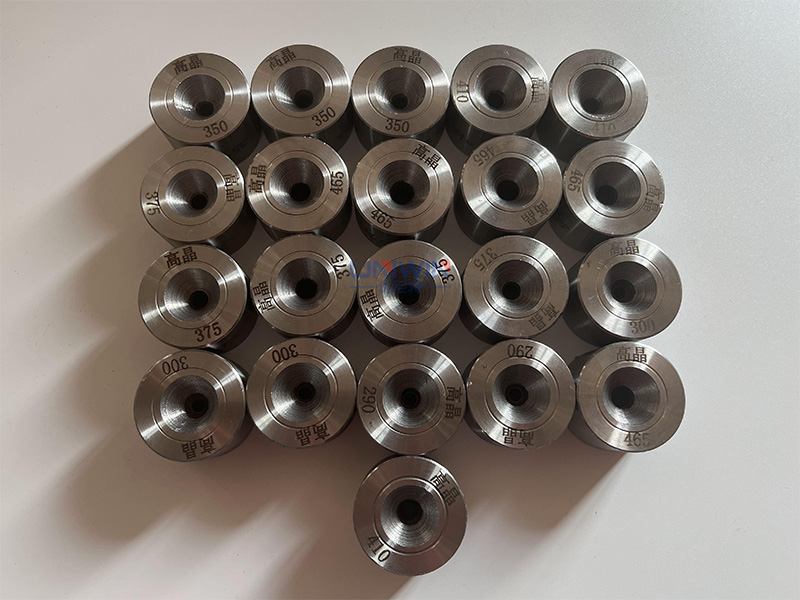

- Diamond Wire Drawing Die can withstand up to 200-300 tons of wire drawing, and one machine supports up to 10 wire drawing die.

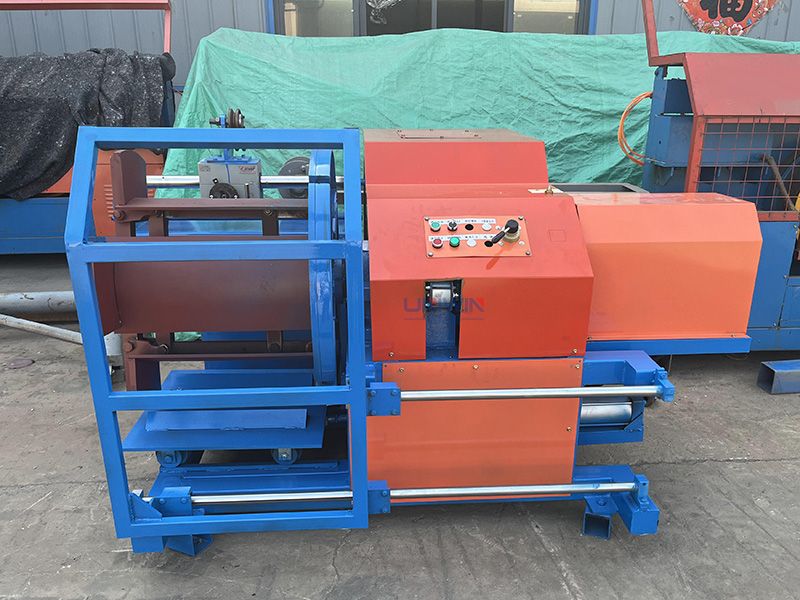

- Automatic Wire Take-up Device, finished drawn wire is neatly coiled.
- Motor + Reducer Drive System to achieve precise wire drawing control.
- Frequency Control System for energy-saving operation.
Technical Parameters of Wet Water Tank Wire Drawing Machine
| Model | Wire Drawing Dies Number | Maxi Speed | Inlet Wire Diameter | Outlet Wire Diameter | Main Motor Power | Speed Control Method |
|---|---|---|---|---|---|---|
| Large Water Tank Drawing Machine (WT-650) | 8 | 7m/S | 5.8mm | 2.8mm | 90–110 Kw | VVVF |
| Medium Water Tank Drawing Machine (WT-600) | 10 | 10m/S | 4.3mm | 2.0mm | 45–75 Kw | VVVF |
| Small Water Tank Drawing Machine (WT-400) | 13 | 13m/S | 2.3mm | 0.7mm | 18.5–30 Kw | VVVF |
Parameters such as mold quantity, wire diameter, structure size, etc. can be customized according to your needs
How Does The Water Tank Wire Drawing Machine Work?
The water tank wire drawing machine uses a main motor combined with a reducer to drive the drawing drum rotating to pull the wire through multiple drawing dies, each with a smaller aperture than the last, reducing the wire’s diameter and increasing wire length.
At the end of the machine, there’s an automatic take-up device that neatly winds the finished wire into coils, saving time and reducing manual work.
Application Of Water Tank Drawing Machine
Uniwin water tank wire drawing machine is suitable for various wire drawing processes:
Nail Manufacturing (e.g., Round Wire Nails, Paper Strip Nails, Coil Nails)
Building Binding Wire
Galvanized Wire
Stainless Steel Wire Drawing
Chain Link Fence
…
