Types of Wire Drawing Machines for Nail Making | Expert Guide by Uniwin
Wire drawing machines are essential equipment in nail manufacturing. Uniwin, with 20+ years of experience in metal wire processing machinery, offers a complete range of wire drawing solutions. This guide covers the 6 most common wire drawing machines types used in the nail industry and how to choose the right one for your production line.
What Is Wire Drawing Machine?
The wire drawing machine is used to reduce the diameter of metal steel wire by pulling it through one or more drawing dies. It improves surface quality and wire strength while preparing the material for further processing like nail making, welding wire, or cable production.
In nail making, drawing is the first step in the production line, converting steel wire rods into nail-quality drawn wires for feeding into nail making machines.
6 Common Types of Wire Drawing Machines for Nail Production
Uniwin offers six widely used types of wire drawing machines, each designed for different wire materials, diameters, and production volumes in the nail manufacturing industry:

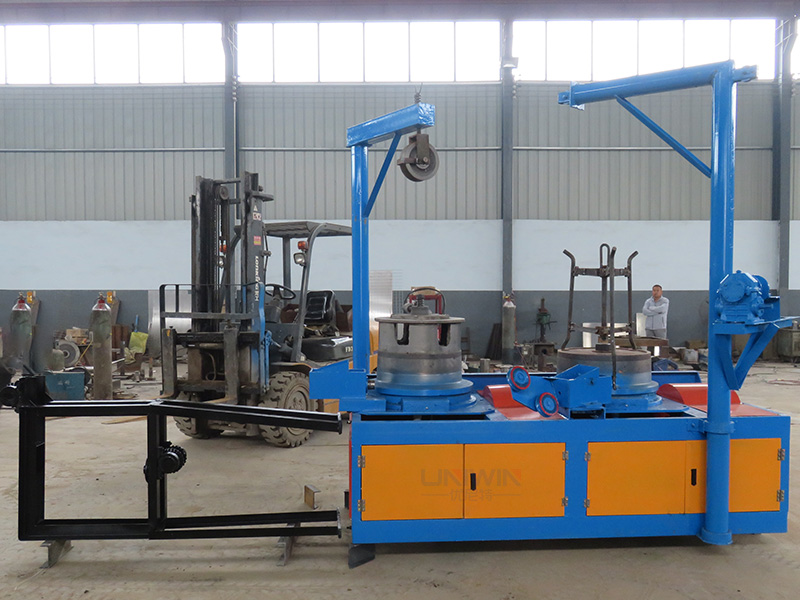

Dry Wire Drawing Machine
Material: Low and medium-carbon steel
Lubrication: Dry drawing powder (calcium/sodium based)
Features: Low cost, simple operation, easy maintenance
Water Tank Wire Drawing Machine (Wet Type)
Material: Copper, stainless steel, fine steel wire, wire diameters such as 1.2mm, 1.0mm, 0.8mm, 0.7mm, 0.6mm, 0.5mm…
Lubrication: Water-based emulsion
Features: Excellent surface finish, ideal for precision applications
Straight Line Wire Drawing Machine
Material: Low to high carbon steel, stainless steel…
Best for: High-volume nail production lines
Features: High speed, automation, stable tension control

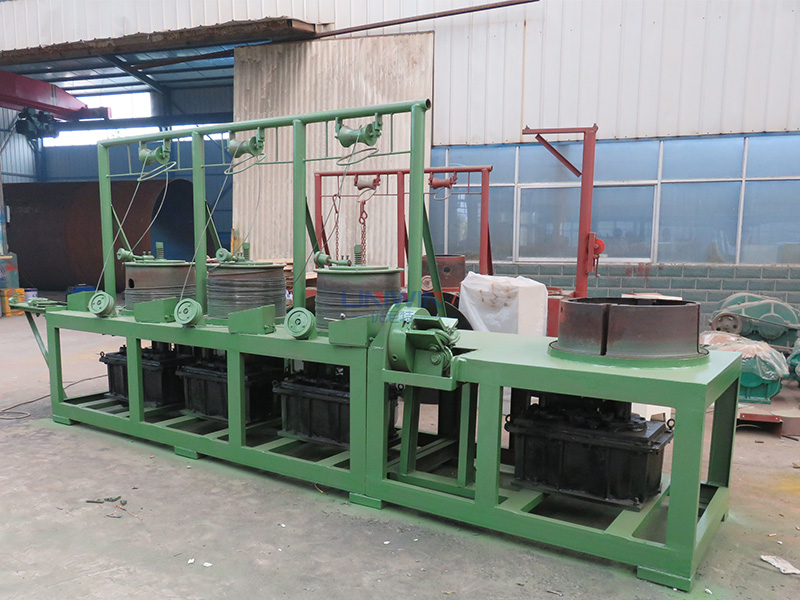

Pulley Wire Drawing Machine
Material: Coarse or thick steel wire
Best for: Traditional nail production workshops or small-scale operations
Features: Economical, easy to operate
Inverted Vertical Drawing Machine
Material: Heavy wire coils, spring steel…
Features: Compact design, ideal for heavy spools

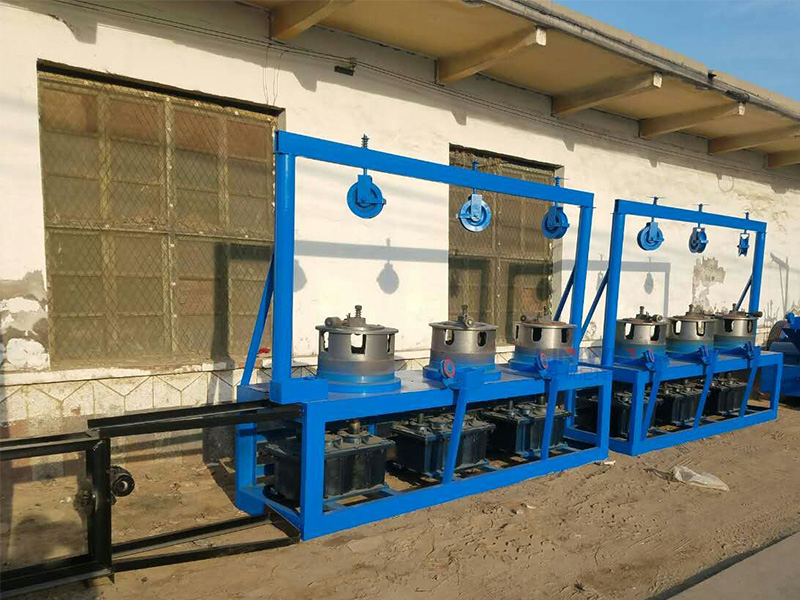

Multi-Pass Continuous Drawing Machine
Material: Various steel wire sizes for large-scale production
Best for: Industrial nail manufacturers
Features: High efficiency, consistent output, compatible with auto take-up systems
Each drawing machine type can be customized with auxiliary systems like descaling equipment, automatic pay-off and take-up systems, and advanced cooling/lubrication modules to maximize efficiency and wire quality.
Optional Equipment for Wire Drawing Lines
Enhance your wire drawing process with Uniwin’s optional equipment:
Wire Descaling Equipment – Remove rust and scale before drawing, improving wire surface and die lifespan.

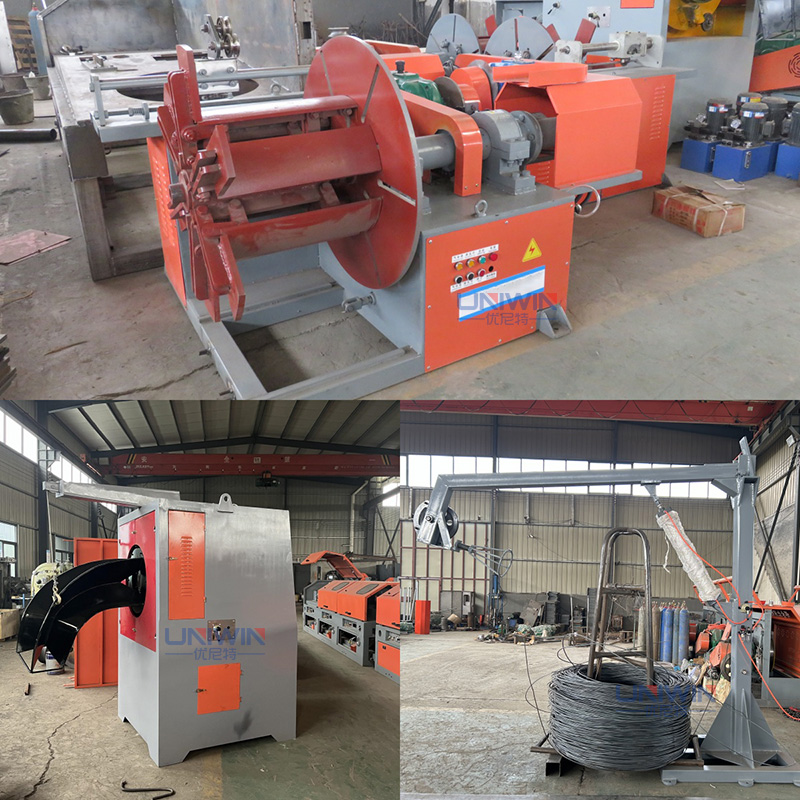

Automatic Pay-off Stand – Feed wire steadily into the drawing machine, preventing tangling and tension issues.
Automatic Wire Take-Up Machine (Elephant Trunk Take-Up Machine/I-Wheel Take-Up Machine) – Collects finished wire automatically.
How to Choose the Right Drawing Machine for Your Nail Factory
| Production Need | Recommended Machine | Reason |
|---|---|---|
| General Nail Production | Dry Wire Drawing Machine | Low investment, easy maintenance |
| Decorative Or Fine Nails | Water Tank Wire Drawing Machine | Excellent finish for small wires |
| High Output Requirements | Straight Line Wire Drawing Machine | High speed and automation support |
| Small Traditional Factory | Pulley Type Drawing Machine | Affordable and simple to operate |
| Large-Diameter Wire | Inverted Vertical Drawing Machine | Handles heavy wire coils, compact design |
| Mass Nail Production | Multi-Pass Continuous Drawing Machine | Fast and consistent, integrates well |
Get a Custom Wire Drawing Solution Today
Need help selecting the right drawing machine? Contact Uniwin for a free consultation and customized proposal based on your nail production goals.
